OPTI CCA Blood Gas Analyzer : Product description

OPTI CCA TS2 is a Blood Gas Analyzer and Electrolyte Analyzer that is used to measure the oxygen and carbon dioxide levels in the blood, as well blood's pH balance The OPTI CCA Blood Gas and Electrolyte Analyzer is a microprocessor-based analyzer that uses discrete sensors called optical electrodes to monitor optical fluorescence (optodes). OPTI CCA Blood Gas and Electrolyte Analyzer required for calibration, sample measurement, and waste containment is contained in a disposable, single-use cassette. Swiping the cassette package through the bar-code reader reads specific calibration information from the cassette into the analyzer. After that, the cassette is inserted into the measuring chamber. By running a precise calibration gas mixture through the optode sensors, the OPTI CCA Blood Gas Analyzer heats the cassette to 37.0°C (0.1°C)/98.6°F (0.1°F) and performs a calibration verification on the sensors for PCO2 and PO2. Precision buffer solution in the cassette is used to calibrate the pH and electrolyte channels. The analyzer aspirates the blood sample into the cassette and across the optode sensors when the calibration is validated. Fluorescence emission is monitored after equilibration with the blood sample.

OPTI CCA TS2 Blood Gas Analyzer and Electrolyte Analyzer Machine : Key Features

• Storage of reagents at normal room temperature, except BUN (2-8°C) and Lactate

• Automatic sample aspiration

• Portable (lightweight and Mains cum battery operated with 8 Hrs back-up)

• Electronic Quality control

• Barcode scanner for quality control information and can be conveniently entered using the on-board bar code scanner

• On-Board Thermal printer

• Display of results on the in-built active color touch screen

• 200 patient data

• RS 232 interface,

• Infrared. ASCII

• CE, UL, IVDD Compliant

• FDA approved

• Up Gradable

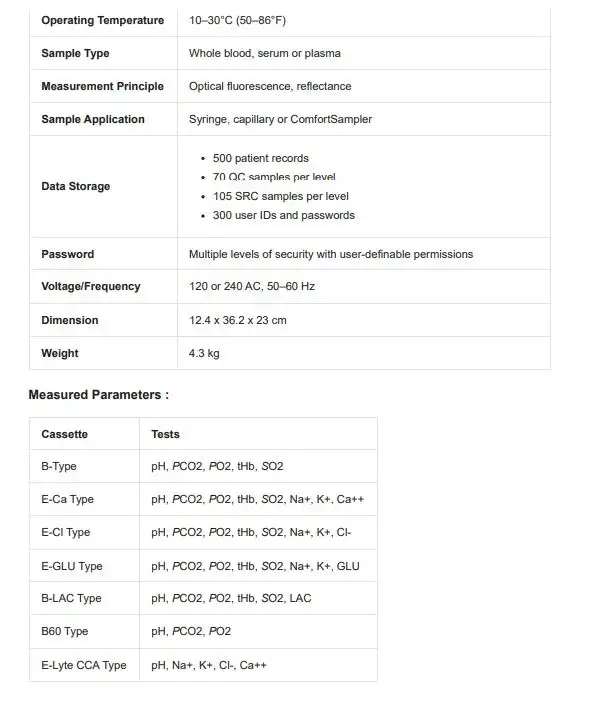

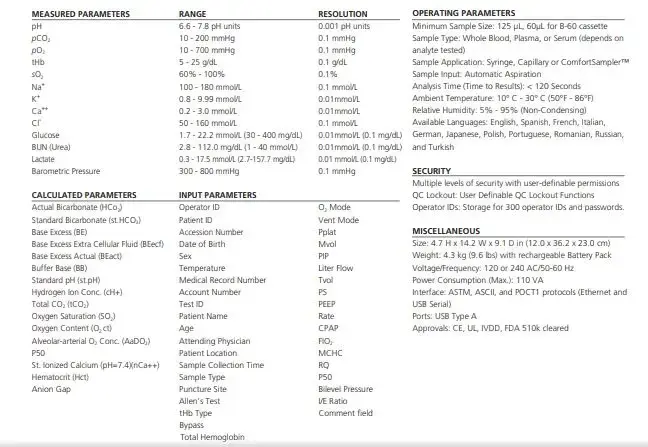

  Operating Parameters:

• Minimum sample size: 125 ul

• Sample type: whole blood, serum,

• plasma Sample application: Syringe, capillary, or Micro sampler

• Sample Input: Automatic Aspiration Analysis time (time to result) < 120 sec.

• Ambient temp: 10°C – 32 °C Relative Humidity: 5% - 95% (non-condensing)

  Weight & Dimensions

• Product Dimension (mm) 124 x 362 x 230 Product

• Weight 4.3 Kg

• Power Supply & Battery

• AC input voltage 120-240 V

• Port and Interfaces Ports USB or Ethernet
